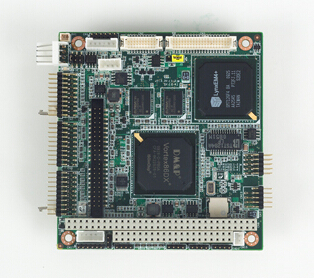

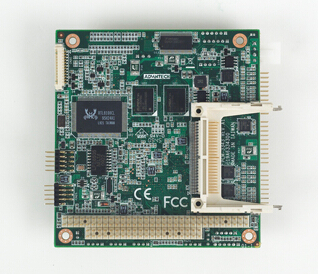

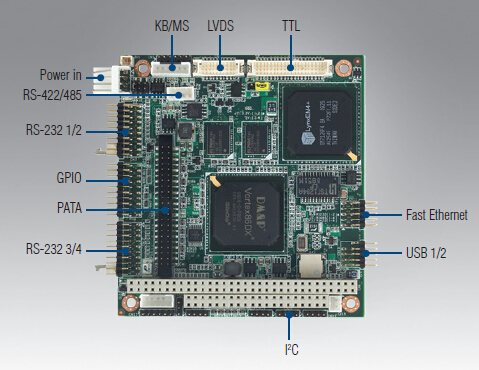

新闻动态 » Ableway Talks » 586级别PC/104主板：PCM-3343
| 参数 | PCM-3343EF-256A1E | PCM-3343EL-256A1E | PCM-3343Z2-256A1E | PCM-3343Z-256A1E | |
| FormFactor | FormFactor | PC/104 | PC/104 | PC/104 | PC/104 |
| Processor | CPU | DM&PVortex86DX800MHz,supportsFloatingPointUnit(FPU) | DM&PVortex86DX800MHz,supportsFloatingPointUnit(FPU) | DM&PVortex86DX800MHz,supportsFloatingPointUnit(FPU) | DM&PVortex86DX800MHz,supportsFloatingPointUnit(FPU) |
| Frequency | 800MHz | 800MHz | 800MHz | 800MHz | |
| L2Cache | 256KB | 256KB | 256KB | 256KB | |
| BIOS | Awardintegrated16MbitROMinSOC | Awardintegrated16MbitROMinSOC | Awardintegrated16MbitROMinSOC | Awardintegrated16MbitROMinSOC | |
| Memory | Technology | DDR2333MHzSDRAMonboard | DDR2333MHzSDRAMonboard | DDR2333MHzSDRAMonboard | DDR2333MHzSDRAMonboard |
| Max.Capacity | 512MB | 512MB | 512MB | 512MB | |
| OnboardMemory | Onboard256MB(512MBsupportedbyrequest) | Onboard256MB(512MBsupportedbyrequest) | Onboard256MB(512MBsupportedbyrequest) | Onboard256MB(512MBsupportedbyrequest) | |
| Display | GraphicEngine | 62.5MHzsingleclock/cycleengine(EM+)/-86MHzsingleclock/cycleengine(EM4+)DesignedtoaccelerateDirectDraw | ? | 62.5MHzsingleclock/cycleengine(EM+)86MHzsingleclock/cycleengine(EM4+)DesignedtoaccelerateDirectDraw | 62.5MHzsingleclock/cycleengine(EM+)86MHzsingleclock/cycleengine(EM4+)DesignedtoaccelerateDirectDraw |
| GraphicMemory | 4MBinternalmemory/- | ? | 4MBinternalmemory | 4MBinternalmemory | |
| VGA | upto1024x768at85Hz/- | ? | upto1024x768at85Hz | upto1024x768at85Hz | |
| LCD(TTL/LVDS/eDP) | LVDS:24-bitupto1024x768/-TTL:singlechannel24bitsupto1024x768 | ? | LVDS:24-bitupto1024x768TTL:singlechannel24bitsupto1024x768 | LVDS:24-bitupto1024x768TTL:singlechannel24bitsupto1024x768 | |
| MultipleDisplay | Dual/- | ? | Dual | Dual | |
| Expansion | I2CBus | 1 | 1 | 1 | 1 |
| PC/104 | 1 | 1 | 1 | 1 | |
| Ethernet | Controller | GbE1:Vortex86DXSOCintegratedGbE2:RealtekRTL8100C-LF | GbE1:Vortex86DXSOCintegratedGbE2:RealtekRTL8100C-LF | GbE1:Vortex86DXSOCintegratedGbE2:RealtekRTL8100C-LF | GbE1:Vortex86DXSOCintegratedGbE2:RealtekRTL8100C-LF |
| Speed | 10/100Mbps | 10/100Mbps | 10/100Mbps | 10/100Mbps | |
| Connector | PinHeader | PinHeader | PinHeader | PinHeader | |
| WatchdogTimer | WatchDogTimer | Yes | Yes | Yes | Yes |
| Storage | IDE | 1 | 1 | 1 | 1 |
| CompactFlash | 1 | 1 | 1 | 1 | |
| I/O | USB2.0 | 4,2 | 4,2 | 4 | 4 |
| SPIBus | Optionalonboard4MBSPIFlashDisk(SupportedbyrequestforbootdeviceorstorageonDOSOS) | Optionalonboard4MBSPIFlashDisk(SupportedbyrequestforbootdeviceorstorageonDOSOS) | Optionalonboard4MBSPIFlashDisk(SupportedbyrequestforbootdeviceorstorageonDOSOS) | Optionalonboard4MBSPIFlashDisk(SupportedbyrequestforbootdeviceorstorageonDOSOS) | |
| GPIO | 1 | 1 | 1 | 1 | |
| COMPort | 4(3xRS232,1xRS232/422/485)/2(1xRS232,1xRS232/422/485)/2(1xRS232,1xRS232/422/485) | 4(3xRS232,1xRS232/422/485)/2(1xRS232,1xRS232/422/485)/2(1xRS232,1xRS232/422/485) | 4(3xRS232,1xRS232/422/485) | 4(3xRS232,1xRS232/422/485) | |
| Keypad | 1 | 1 | 1 | 1 | |
| Power | PowerType | AT | AT | AT | AT |
| PowerSupplyVoltage | 5V±5%onlytobootup(12VisoptionalforLCDinverterandadd-oncard) | 5V±5%onlytobootup(12VisoptionalforLCDinverterandadd-oncard) | 5V±5%onlytobootup(12VisoptionalforLCDinverterandadd-oncard) | 5V±5%onlytobootup(12VisoptionalforLCDinverterandadd-oncard) | |
| PowerConsumption(Idle) | 0.74@+5V,3.7Watt(Vortex86DX1GHz,DDR2256MB) | 0.74@+5V,3.7Watt(Vortex86DX1GHz,DDR2256MB) | 0.74@+5V,3.7Watt(Vortex86DX1GHz,DDR2256MB) | 0.74@+5V,3.7Watt(Vortex86DX1GHz,DDR2256MB) | |
| PowerConsumption(FullLoad) | 0.85A@+5V,4.25Watt(Vortex86DX1GHz,DDR2256MB) | 0.85A@+5V,4.25Watt(Vortex86DX1GHz,DDR2256MB) | 0.85A@+5V,4.25Watt(Vortex86DX1GHz,DDR2256MB) | 0.85A@+5V,4.25Watt(Vortex86DX1GHz,DDR2256MB) | |
| Battery | 3V/210mAH | 3V/210mAH | 3V/210mAH | 3V/210mAH | |
| Environment | OperationalTemperature | 0~60°C(32~140°F)(Operationalhumidity:40°C@85%RHnon-condensing) | 0~60°C(32~140°F)(Operationalhumidity:40°C@85%RHnon-condensing) | -40°C~85°C | -20°C~80°C |
| Non-OperationalTemperature | -40°C~85°Cand60°C@95%RHnon-condensing | -40°C~85°Cand60°C@95%RHnon-condensing | -40°C~85°Cand60°C@95%RHnon-condensing | -40°C~85°Cand60°C@95%RHnon-condensing | |
| Physical | Dimension(mm) | 96x90mm(3.8″x3.5″) | 96x90mm(3.8″x3.5″) | 96x90mm(3.8″x3.5″) | 96x90mm(3.8″x3.5″) |
| Weight | 0.508kg(1.12lb) | 0.508kg(1.12lb) | 0.508kg(1.12lb) | 0.508kg(1.12lb) | |
| OperatingSystem | MicrosoftWindows | Yes | Yes | Yes | Yes |
| Linux | Yes | Yes | Yes | Yes | |
| Certification | EMC | CE,FCC | CE,FCC | CE,FCC | CE,FCC |
